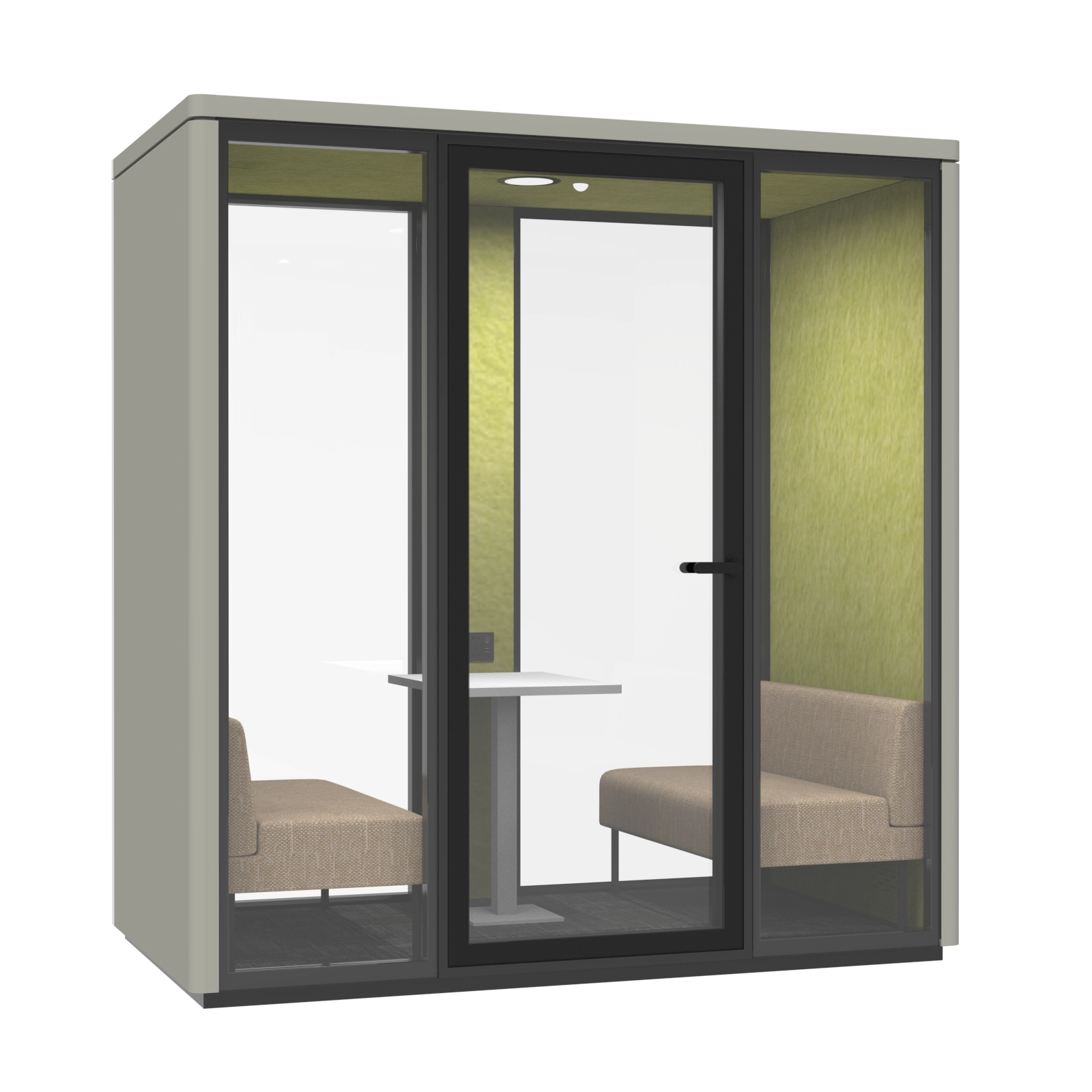

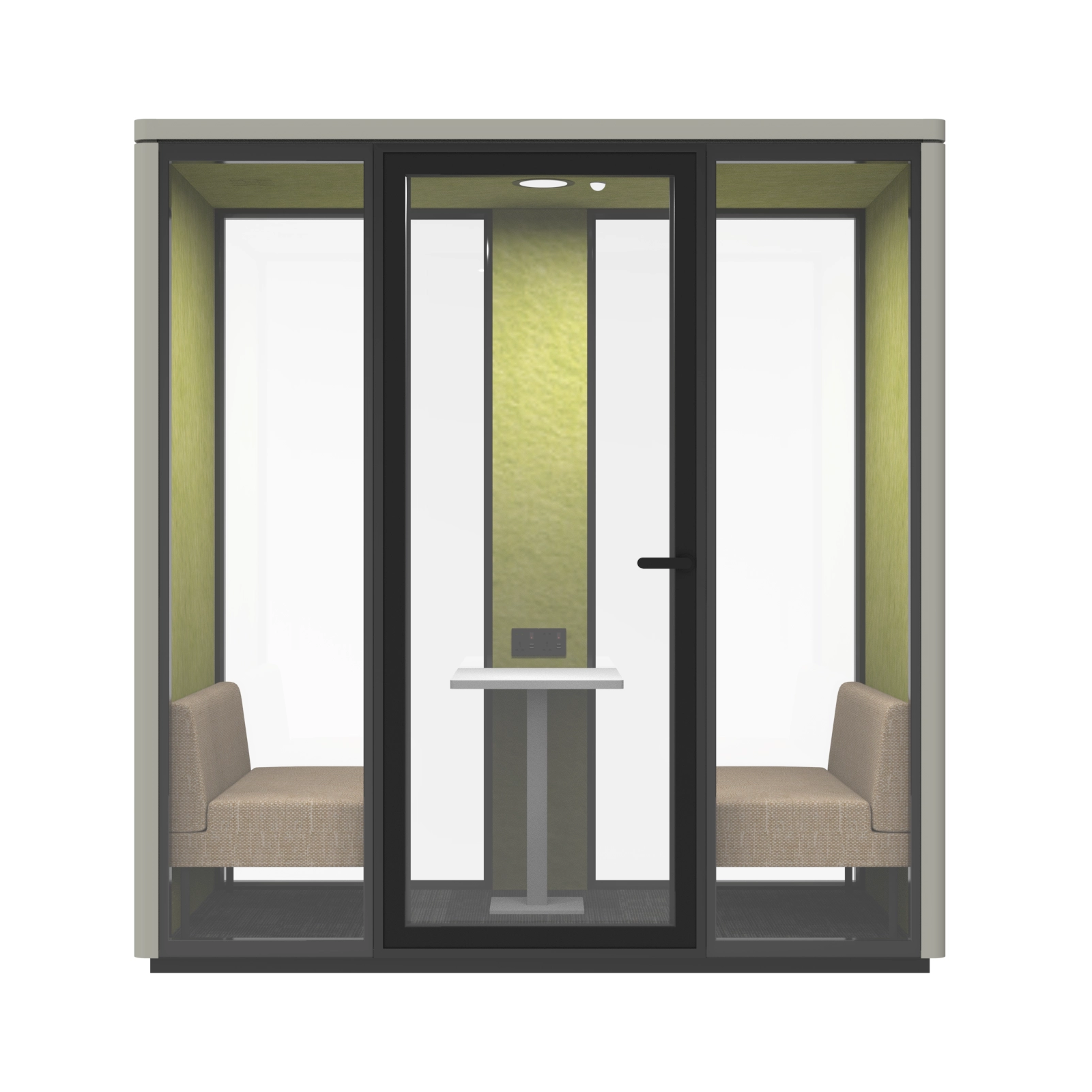

Meeting Pod‑MP

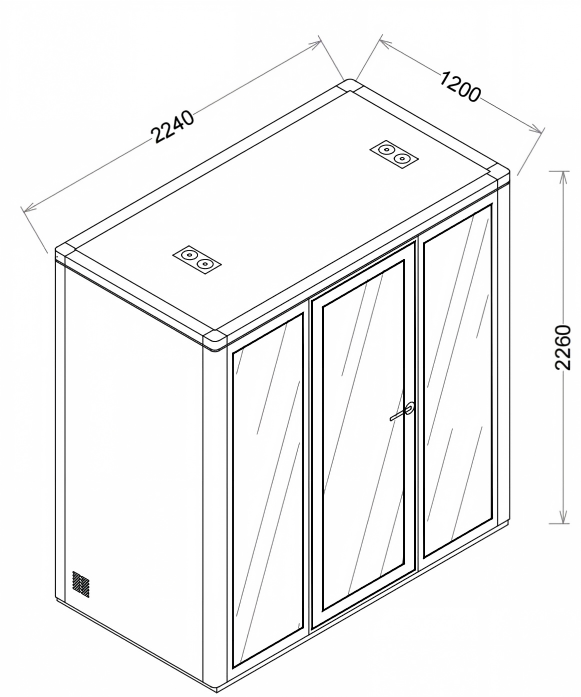

External Dimensions

2240*1200*2260mm

88.2*D47.2*89.0in (W, D, H)

Internal Dimensions

2100*D1060*H2160mm

82.7*D41.7*H81.1 in (W, D, H)

Package Size

2280*1300*935 mm

89. 76× 43.31 × 25.0in (L, W, H)

Gross Weight

688kgs/1517lb (approx.)

Volume

2.77cbm

Container Loading Capacity

20‘G Container；8 Sets

40’ HQ Container:27 Sets

Material

Glass

Tempered glass

Door

magnetic

lock, handle, Hidden hinges and door closer

Ceiling

Multi‑layer ceiling construction

Floor

Acoustic floor system featuring integrated casters and adjustable leveling feet.

Solid Structure

Steel sandwich structure

Optional

Fabric finishes for interior and exterior panels

Electrical

Power Supply

AC 100‑240V, 50/60Hz power supply with a 3 m (9.8 ft) power cord

Lighting

4000K LED lighting with motion sensor activation for comfortable and energy‑efficient illumination.

Ventilation Fan

4 pieces 24V DC ventilation fans delivering up to 404 m²/h

Power Socket

Integrated universal power socket with USB‑A and USB‑C charging ports. Optional HDMI and CAT6 ports.

Power Consumption

Typical operating power consumption of 15.3 W.

Optional

LCD smart control system, touch dimmer for light and ventilation, occupancy indicator light

Safety

Fire safety

Designed to support commercial fire safety requirements, with tested materials and optional sprinkler cutouts for integration with building fire protection systems.

Seismic safety

Optional anchoring brackets are available for installations in seismicregions, providing additional stability and secure floor attachment.
